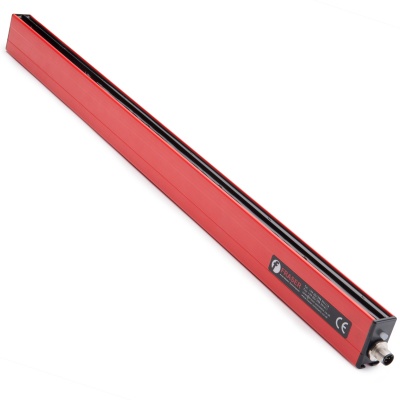

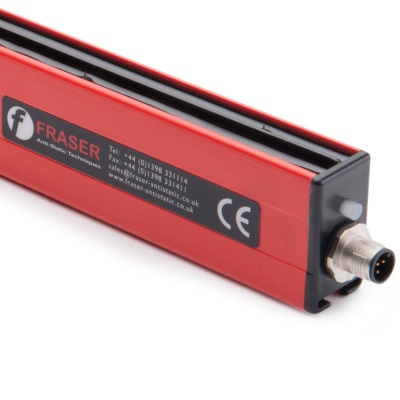

NEOS 12 is available in 2 versions:
NEOS 12F is designed to be mounted within 100 mm of the product. It is the most powerful short range static eliminator available.
NEOS 12L is a medium range static eliminator for distances up to 600 mm. For longer ranges see also NEOS 20 and NEOS 30.
Specification
Size:
NEOS 12F: min length 300 mm then steps of 60 mm to 4.98 m.
NEOS 12L: min length 360 mm then steps of 120 mm to 4.92 m.
Electrical Supply: 24 V DC (21-27 V), maximum current required 1 A M12 5-pin connector.
Remote Monitor: 2 signals available: “HV OK” and “Attention” can be used to drive external loads or interface to systems (lamp, relay, PLC as required).
High Voltage Supply: 12 kV supply integrated into Bar.
Construction: Reinforced FR-ABS Industrial grade extrusion and end cap, fully encapsulated with epoxy resin.
Protection Classification: IP67. Fully sealed.
Environment: -10 to 55°C, 70% RH non-condensing.
Weight: 1.5 kg/m. Certifications: CE. UL & CB
LED:
O:Bar OK
O:Bar Fault
OO(Alternating):Bar Need to Clean

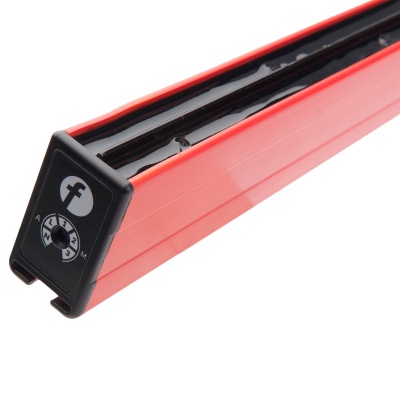

MODLE:
N:Auto Normal
L:Auto Long
1:Manual Long Range
2:Manual Medium Range
3:Manual Short Range
CE(UL / CB) / IP67
NEO-PSU power supply。
