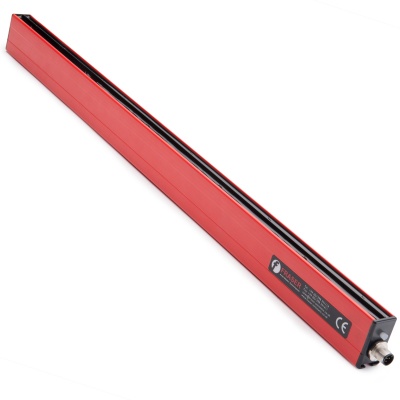

NEOS 20 is a long range static eliminator for distances between 150 mm and 800 mm. For longer ranges see also NEOS 30.
HOW TO WORK
Specification
Size: NEOS 20 Min length 450 mm then steps of 150 mm to 4.95 m.

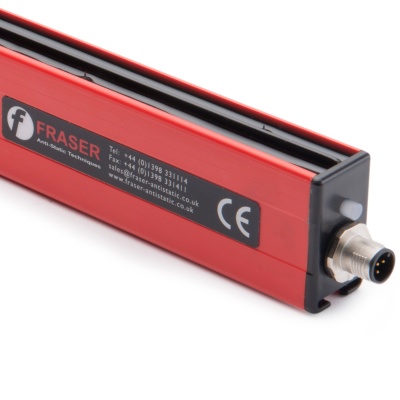

Electrical Supply: 24 V DC (21-27 V), maximum current required 1.5 A M12 5-pin connector.
Remote Monitor: 2 signals available: “HV OK” and “Attention” can be used to drive external loads or interface to systems (lamp, relay, PLC as required).
High Voltage Supply: 20 kV supply integrated into Bar. Construction: Reinforced FR-ABS Industrial grade extrusion and end cap, fully encapsulated with epoxy resin.
Protection Classification: IP67. Fully sealed.
Environment: -10 to 55°C, 70%RH non-condensing.
Weight: 2.6 kg/m. Certifications: CE, UL & CB
LED狀態指示燈:
O:Bar ok
O:Bar fault
OOflash:clean me

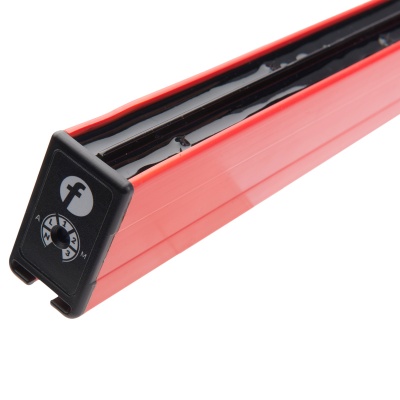

N:Auto Normal
L:Auto Long (up tp 800mm)
1:Manual Long Range
2:Manual Medium Range
3:Manual Short Range
CE(UL / CB) / IP67
NEO-PSU power supply。
