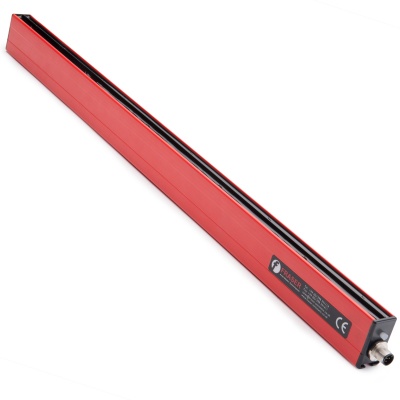

NEOS 30 is a long range static eliminator for distances between 200 mm and 1500 mm. For shorter ranges see also NEOS 20.
HOW TO WORK
Specification
Size: NEOS 30 Min length 600 mm then 750 mm then steps of 250 mm to 5 m.

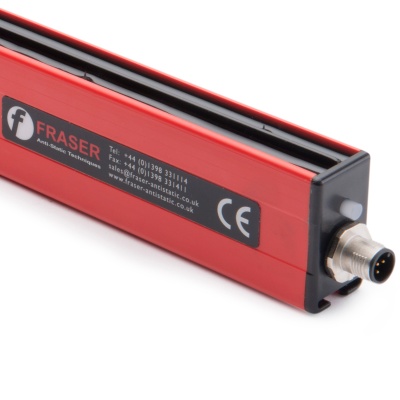

Electrical Supply: 24 V DC (21-27 V), maximum current required 2.2 A M12 5-pin connector.
Remote Monitor: 2 signals available: “HV OK” and “Attention” can be used to drive external loads or interface to systems (lamp, relay, PLC as required).
High Voltage Supply: 30kV supply integrated into Bar.
Construction: Reinforced FR-ABS Industrial grade extrusion and end cap, fully encapsulated with epoxy resin.
Protection Classification: IP67. Fully sealed.
Environment: -10 to 55°C, 70% RH non-condensing. Weight: 3.6 kg/m. Certifications: CE, UL & CB
LED狀態指示燈:
O:Bar ok
O:Bar fault
OOflash:Clean Me

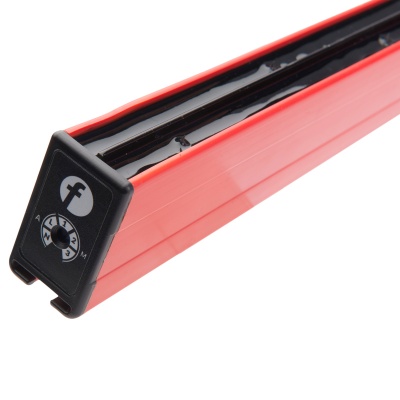

N:Auto Normal
L:Auto Long (up to 1500mm)
1:Manual Long Range
2:Manual Medium Range
3:Manual Short Range
CE(UL / CB) / IP67
NEO-PSU power supply。
