FRASER Anti-Static Techniques
Product Name
Static Meter
Model
715
機器設備

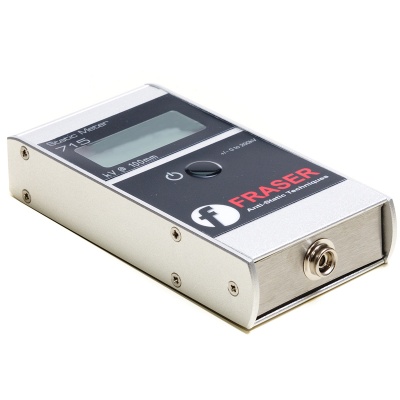

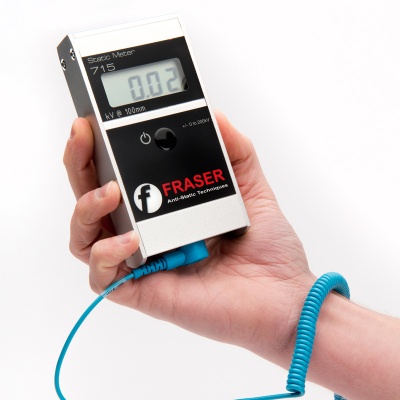

The 715 Static Meter has been developed to enable industrial engineers to investigate static electricity problems.

Product Specification

Range/Resolution/ Accuracy: 0-200 kV / 100 V and 0-20 kV / 10 V.  +/- 5%.



Drift: <0.1% in 10secs.



Standard: EN-500081-1 (EMC) and BS7506-2 (Construction)

.

Calibration: On a 150mm x 150mm charge plate. Can be calibrated on other charge plate sizes to meet country standards e.g 450 mm x 450 mm for China. Size,

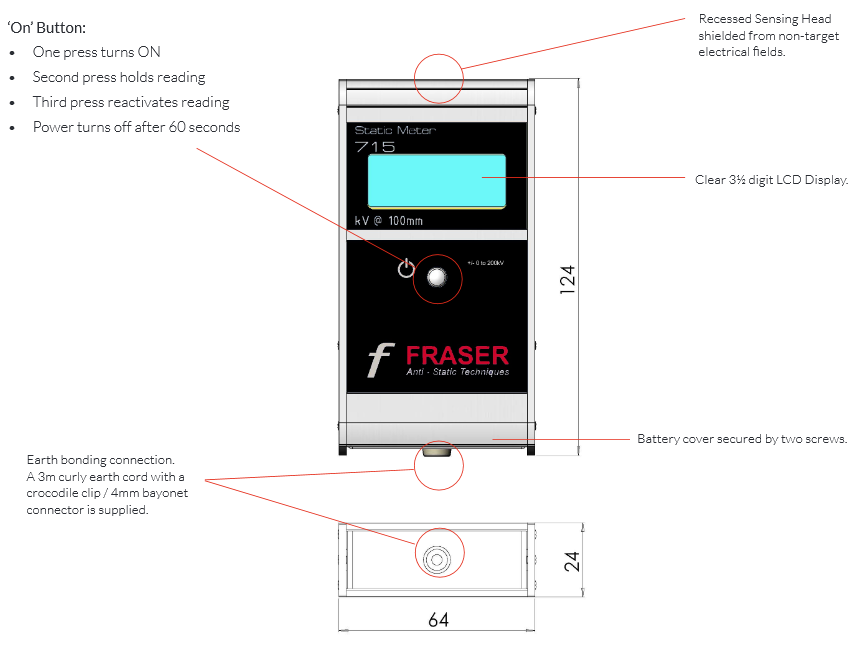

Weight: 124 mm x 24 mm x 64 mm. 175 g.

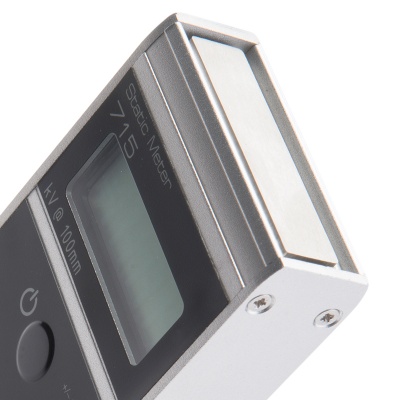

Construction: Anodised aluminium case with recessed stainless steel sensing plate for maximum integrity and accuracy.



Operation: Click button to zero and make readings. Click button again to “hold” the reading. Click again to resume readings. Automatic switch-off after 60 seconds.

.

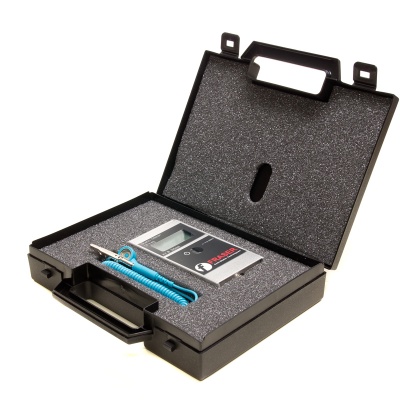

Equipment: Supplied with carrying case, 9V PPS battery, earth lead and certificate of calibration.
