FRASER Anti-Static Techniques
Product Name
Short Range Static Elimination
Model

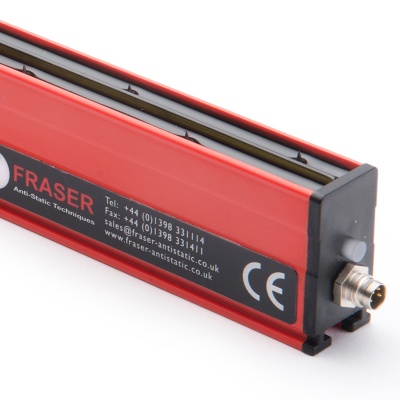

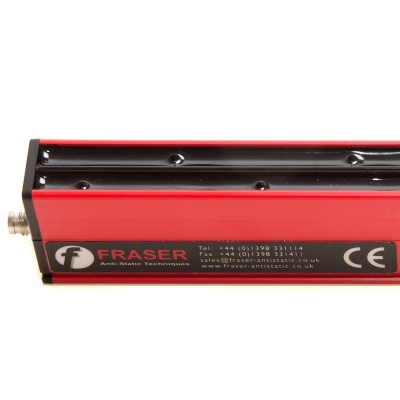

3014 24VDC Ionising Bar
機器設備

Electrical Supply: Input: 24 V DC (21-27 V), max current 0.5 A.

Length 250 mm then in 40 mm steps to 4010 mm.

System Monitoring: LED on endcap

Remote Monitoring: makes this information available with a 24 V signal from the Bar to a PLC or other destination.

High Voltage Output: Up to 7.5 kV supply integrated into Bar.

Standards: CE, UL and CB.



















Product Specification

Market leading performance in a very compact Bar for compatibility with modern machinery. Integrated high voltage power supply, requires only a low voltage 24 V DC input.

The 3014 represents another leap forward in DC Static Control technology from Fraser Anti-Static Techniques. This compact 24 V DC static eliminator is an ideal (and more powerful) alternative to traditional AC powered static control bars. The compact profile allows the bar to be situated closer to the material being treated and more easily integrated with modern machinery designs. To discuss your requirements and determine that the 3014 would be a suitable compact static eliminator for your situation, please download the data sheet and contact an engineer at Fraser Anti-Static today.


  • Emitters made from tungsten for best long term performance; Resistively coupled for shockless operation.

  • LED status indication: Bar OK: (green), fault: (red). Clean Me: (alternating red/green).

  • Remote monitoring of operational status and cleanliness through 24 V signals.

  • Effective length = 20 mm less than overall length.

  • Standard M8 4 pin connector.

  • Best operational distance: 20 mm to over 150 mm.



 LED:

   O:Bar OK

   O:Bar Fault

   OO(Alternating):Bar Need to Clean







CE(UL / CB) / IP67



E3024-PSU power supply
